Planar near-field electromagnetic characterization
PLATINOM has an ultra-wide band (2.0 GHz – 330 GHz) vertical planar near-field scanner installed on an optical table. Currently, three frequency bands are possible corresponding to the available near-field probes. The near-field probe is moved in front of the device under test positioned on the optical table. A vector network analyzer measures the electromagnetic wave created by the device under test on a volume of 1.0 x 1.0 x 0.3 m.

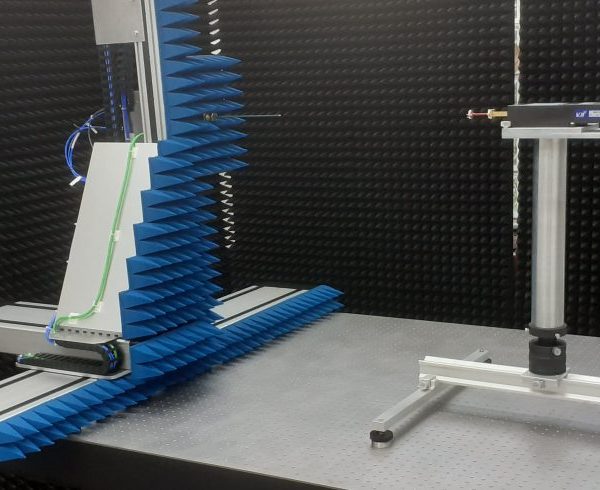

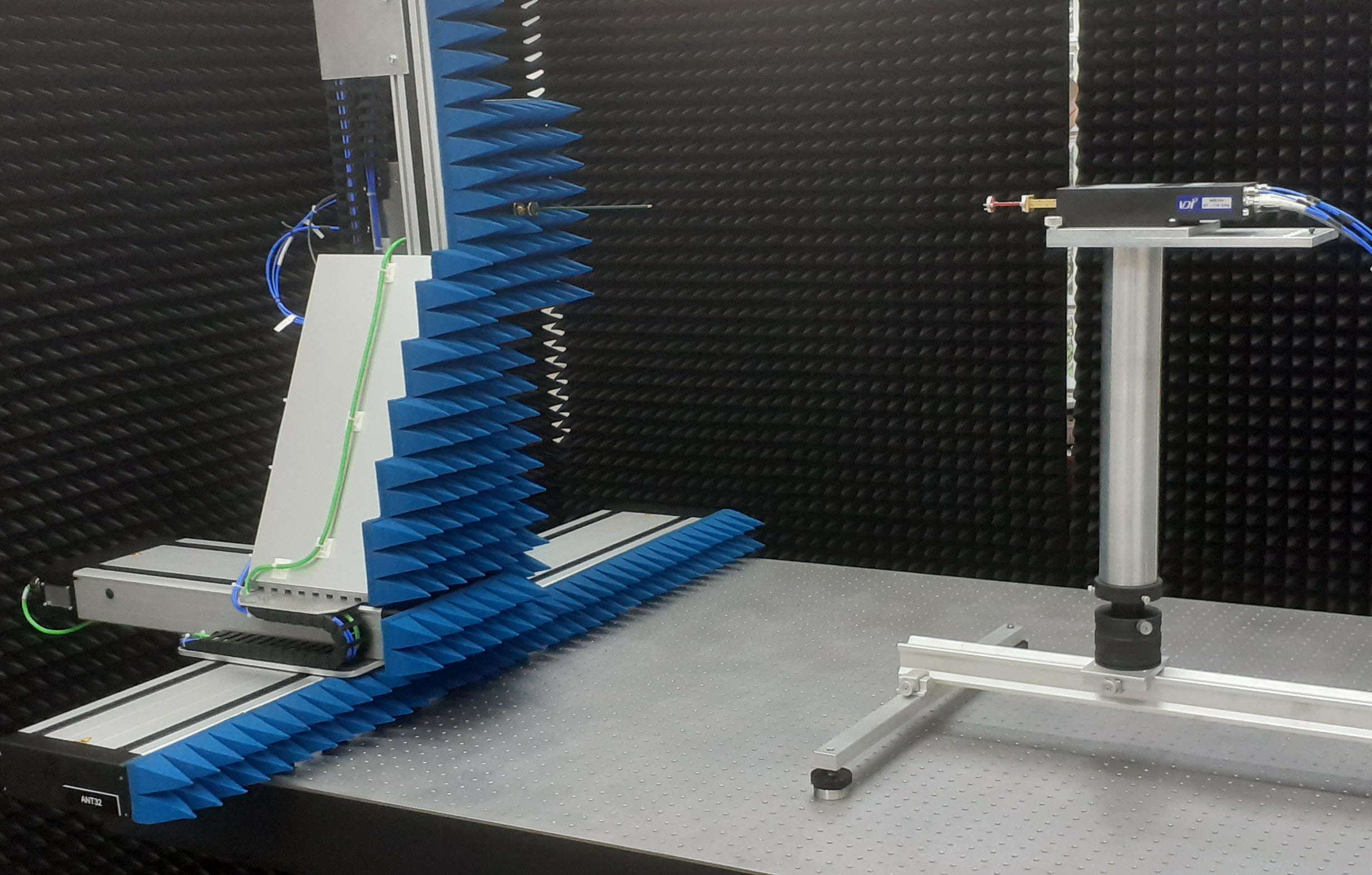

2D Scanner
|
|
|

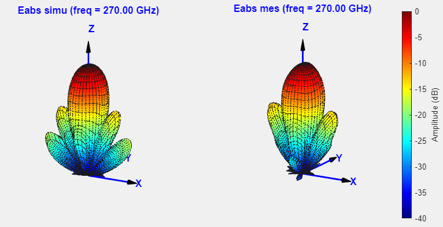

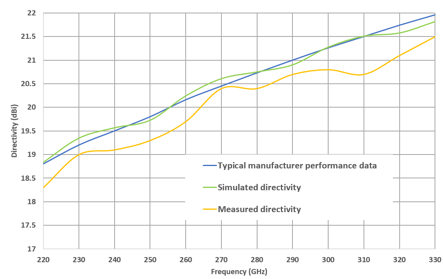

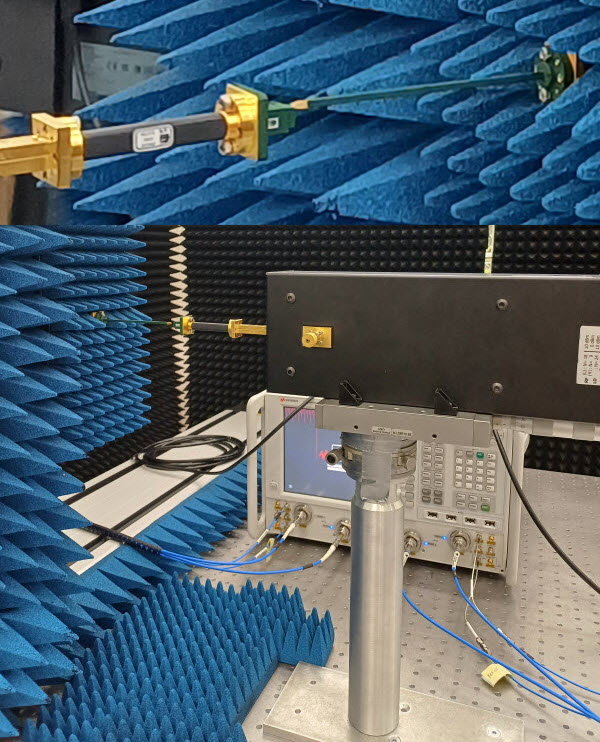

Planar scanner set-up and associated measurements
Characteristics:Frequency Range:
Scan Area: 1 m x 1 m x 0.3 m Resolution (x,y,z): 0.01 mm Position Accuracy = 0.02 mm optical table size: 1.2 X 2.0 m |
Feasible measurement:Characterization and calibration of short-range 2D imaging Near-field measurement for mapping antenna surface currents Antenna testing
|

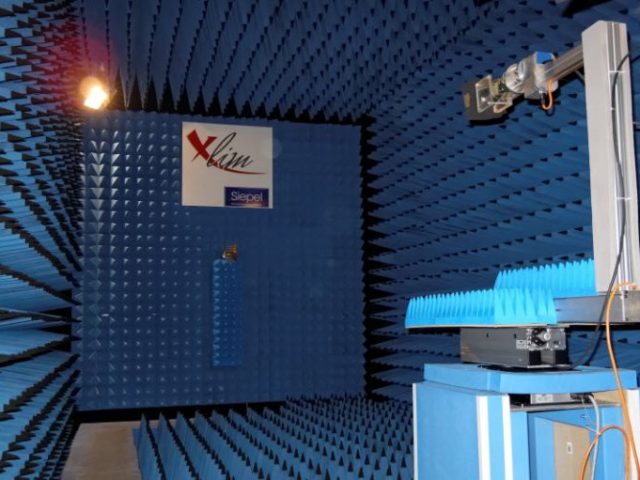

Spherical near-field electromagnetic characterization (3D)
PLATINOM has an ultra-wide band (8.0 GHz – 110 GHz) spherical near-field antenna test range. The antenna under test can be fed by coaxial RF GSG probes.
 |
 |
Characteristics:Frequency Range: 8.0 – 110.0 GHz Max AUT Diameter = 200 mm Resolution : 0.1° Phi/Theta
|
Feasible measurement:Antenna testing
|
