Mode-stirred reverberation chamber
PLATINOM’s mode-stirred reverberation chamber (picture following). It can be used with a stirrer to obtain the electromagnetic field necessary for the qualification of equipment to EMC standards or only as a Faraday cage to provide an environment isolated from external influences.

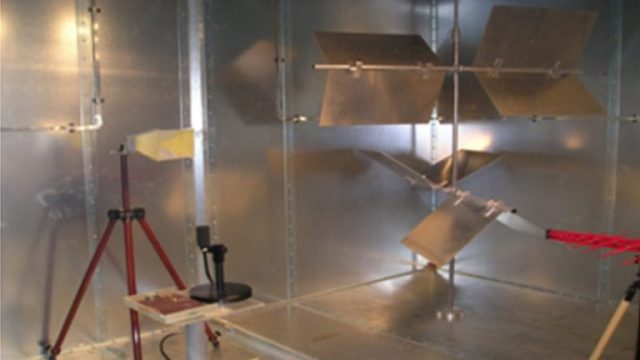

indoor wiew of the mode-stirred reverberation chamber
Characteristics:Operating frequency: 400MHz to 18 GHz Faraday Cage Interior dimensions: 3.56m X 2.46m X 2.45 m Statistically homogeneous and isotropic field (DUT max dimension: 15% of the chamber volume) Feasible measurements:Immunity test Emission test Shielding effectiveness measurement of metallic enclosure |
